1/ Overview
Equipment Advantages
- Double scanner with high speed scanning: variable spot technology.
- High efficiency, more than 4 times faster comparing with domestic ordinary stereolithography equipment.

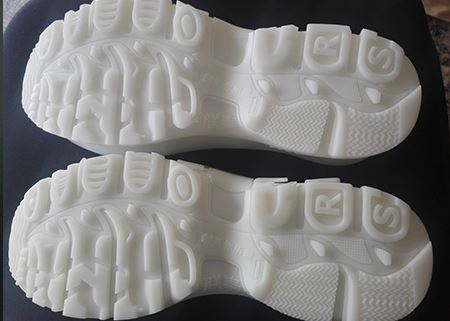

- High precision, can restore details soles and side pattern with 0.06 mm.
- Intelligent control, automatic calibration, automatic liquid infusion.
- Epm system with remote device controlling platform, real-time monitor, optimization management.
- CE certification.
- The new surface design, streamlined machine body, full of stronger sense with science and technology.
2/ Techinical Data
Build Envelope Capacity：27.6 x 13.8 x 13.8 in (700 × 350 × 350 mm)
Dimensions (W x D x H)：70.5 x 52 x 84.3 in (1790 x 1320 x 2140 mm)
Laser：Solid-state frequency tripled Nd:YVO4
Wavelength：355 nm
Power (nominal)：At head 1500 mW (Typically 800mW on the target surface of the material under nominal optical path condition)
Rated Power：4.2 kVA
Beam Size：Nominal 0.005 – 0.031 in (0.12 – 0.8 mm)
Layer Thickness：0.003 in (0.07 mm) minimum; (0.01 in (0.25 mm) maximum
Scanning Speed：18 m/s (Maximum); 8 – 15m/s (Typical)
Accuracy：
- L ＜ 100mm: ±0.06 mm
- L ≥ 100mm: ±0.06%xL (Accuracy may vary depending on parameters, part geometry/size, pre- or post-processing methods, materials, and environment.)
Elevator Positioning Accuracy ：≤ ±8 μm
Liquid Level Positioning Accuracy：≤ ±0.03 mm
Systems Control：Closed-loop
Operating System：Windows 7, Windows 10*
Part Preparation：Materialise Magics
Input Data File Format：STL
Electrical Requirements：200-240VAC 50/60Hz, single-phase
